20ft. Deluxe Flagpole

Product Description

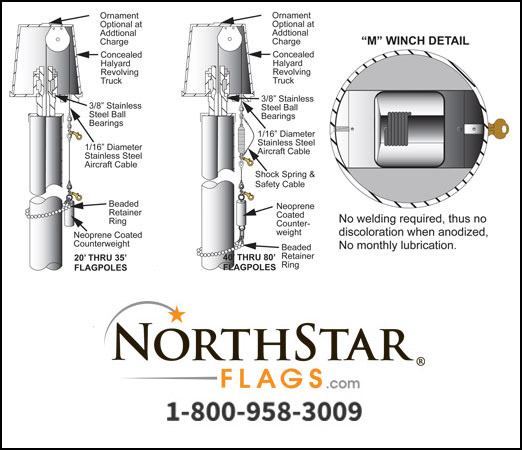

Our Deluxe IH Series Flagpoles are unsurpassed in craftsmanship and beauty. These internal halyard (rope) flagpoles contain a winch mounted inside the flagpole shaft, operable only with a removable crank handle. As the stainless steel cable unwinds from the winch, it passes up through the inside of the flagpole shaft, over the truck sheave to the outside of the shaft, where the retaining ring provides a sliding anchor.

A counterweight, heavily coated with neoprene, attached to the retainer ring, allows the rope to be lowered for fastening or removing the flag. The rope is then completely out of reach of vandals. The improved winch is gearless and self-locking at any point, eliminating the need for a separate brake. The direct drive winch provides rapid raising and lowering of the flag with little effort.

This flagpole comes standard with a satin finish ( a satin finish is on about 95% of all the flagpoles you see). The poles are available in 3 other finishes: Clear Anodized, Bronze Anodized and Black Anodized. For these finishes, please call for pricing.

Due to continuing fuel price fluctuations, shipping will not be correctly calculated when you check out. Because of this, you will be notified of correct shipping charges BEFORE we complete your order and ship your flagpole. Sorry for any inconvenience.


Flagpole Specifications

Exposed Height: 20ft.

Overall Length: 23ft.

Base Diameter: 5"

Top Diameter: 3"

Wall Thickness: .125"

Maximum Wind Speed: 250 mph
(Without Flag)

Max. Suggested Flag Size: 5'x8'
